Description

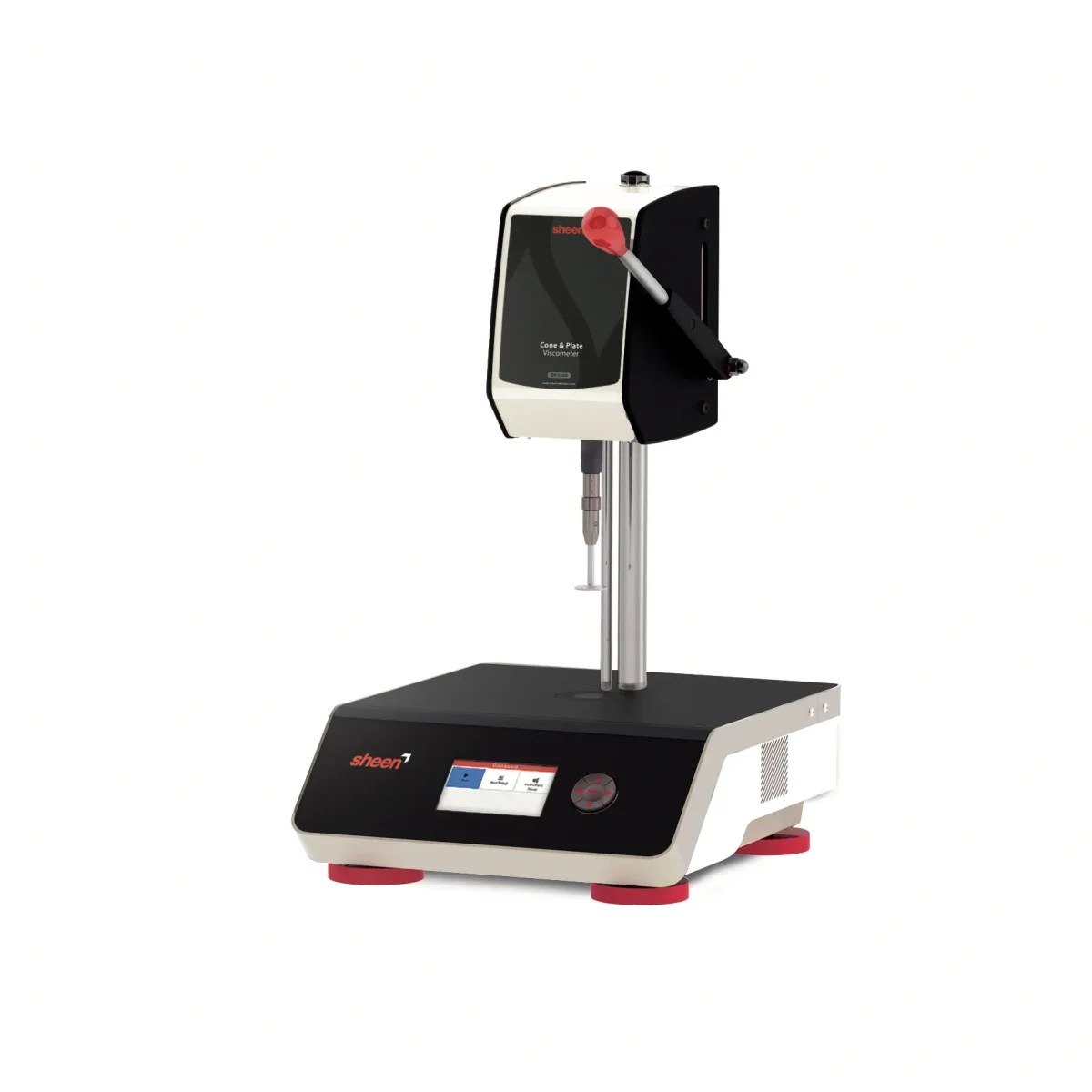

The TQC Sheen Cone and Plate Viscometer is a laboratory instrument designed for accurate dynamic viscosity measurement of liquids, particularly non-Newtonian materials such as paints, coatings, inks, gels and resins. By combining precise shear rate control with a temperature-regulated plate, this viscometer delivers reliable viscosity data that closely reflects real application conditions such as brushing, rolling or spraying.
This makes the instrument ideal for use in quality control laboratories, research and development facilities, and production environments where repeatable and meaningful viscosity data is essential.
Because non-Newtonian fluids change their viscosity depending on the applied shear rate, the Cone and Plate Viscometer maintains precise control of this parameter. The instrument operates at a defined shear rate of 10,000 s⁻¹ (BS / ISO) or 12,000 s⁻¹ (ASTM). These shear rates are widely accepted as representative of typical paint application methods such as brushing or roller application, ensuring that test results closely reflect real-world performance.
Since viscosity measurements are highly sensitive to temperature variations, the test sample is placed on a temperature-controlled plate. The plate temperature can be accurately set and maintained between 5 °C and 65 °C, ensuring stable, repeatable and reliable measurement conditions.
⸻
How It Works
- Ensure the cone and plate are clean.
- Set the required test temperature on the temperature-controlled plate.
- Select and install the appropriate cone for the desired viscosity range.
- Place a small sample of the test material on the plate surface (see manual for recommended sample volumes).
- Lower the cone gently onto the plate, allowing the sample to evenly fill the gap between cone and plate.
- At least 15 seconds should be allowed to reach plate temperature (longer if sample temperature is significantly different)
- Start the measurement; the cone rotates at a controlled speed, applying a uniform shear rate to the sample.
- The torque required to maintain rotation is measured and converted into dynamic viscosity values.
- Record the result as required
- After testing, raise the cone and clean the cone and plate surfaces.
- Lower the plate onto the cone to keep it at the plate temperature for the next test.
This method provides controlled shear and temperature conditions, making it particularly suitable for testing shear-sensitive and non-Newtonian fluids.
⸻
Key Features & Benefits
- Controlled shear rate testing for accurate evaluation of non-Newtonian fluids
- Temperature-regulated plate for consistent and repeatable measurements
- Reading in P, cP, Pa.s or mPa.s
- Reflects real-world application behaviour such as brushing and rolling
- Interchangeable cone sets available for different viscosity ranges
- Calibration by user; for any cone used with certified oils
- Memory for 100 readings
⸻
Technical Specifications
| SKU | CSTDV2500 |
| Mains | 100–240 V / 50–60 Hz |
| Operating Temperature | 15 – 35 °C / 59 – 95 °F |
| Net Weight | 19.5 kg |
| Dimensions (H × W × D) | 85 × 340 × 410 mm |
| Speed | 750 & 900 rpm |
| Spindle | Supplied separately |
| Standards | ISO 2884-1, ASTM D4287, BS 3900-A7 |
| Temperature Range | 5 – 65 °C / 41 – 149 °F |
| Viscosity Units | P, cP, mPa·s, Pa·s |
| Measurement Ranges | 0 – 5 P 0 – 10 P 0 – 20 P 5 – 50 P 10 – 100 P |
| Resolution* | 0.000 P 0.0 cP 0.0 mPa·s 0.000 Pa·s |
| Accuracy | ± 2% of full range |
| Repeatability | < ± 0.5% |
| Temperature Resolution | 0.1 °C / 0.01 °C |
* Maximum available resolution. Lower resolution can be selected in the menu.
** Standards available at launch of the unit (November 2022).
⸻
Scope of Supply
- CSTDV2500 TQC Sheen Cone and Plate Viscometer CP1
- Handle
- Control interface with display
- 24V adapter + Power cable
- Calibration Certificate
- User documentation
⚠️ Note: Suitable cone kits for your applications (incl. 5 certified calibrations oils) must be ordered separately.
⸻
Accessories
- Cone sets for various viscosity ranges (see below)
- Calibration oils and reference standard
⸻
Optional Cones
| Part Number | Cone Range |
|---|---|
| CSTSH1589 | 0 – 5 Poise |
| CSTSH1464 | 0 – 10 Poise |
| CSTSH1520 | 0 – 20 Poise |
| CSTSH1568 | 5 – 50 Poise |
| CSTSH1579 | 10 – 100 Poise |
⸻
Optional Cones including viscosity oils
| Part Number | Cone Range | Included |
|---|---|---|
| CSTSH1429 | 0 – 5 Poise | 5 certified viscosity oils (SH490/166) |
| CSTSH1432 | 0 – 10 Poise | 5 certified viscosity oils (SH490/166) |
| CSTSH1428 | 0 – 20 Poise | 5 certified viscosity oils (SH490/166) |
| CSTSH1427 | 5 – 50 Poise | 5 certified viscosity oils (SH490/166) |
| CSTSH1434 | 10 – 100 Poise | 5 certified viscosity oils (SH490/166) |
⸻
Manufacturing and Standards
The TQC Sheen Cone and Plate Viscometer is manufactured by TQC Sheen, part of Industrial Physics, in the The Netherlands (Europe). It is manufactured under strict quality control procedures to ensure accurate and repeatable performance, meeting ASTM D4287, BS3900-A7 and ISO2884
