Description

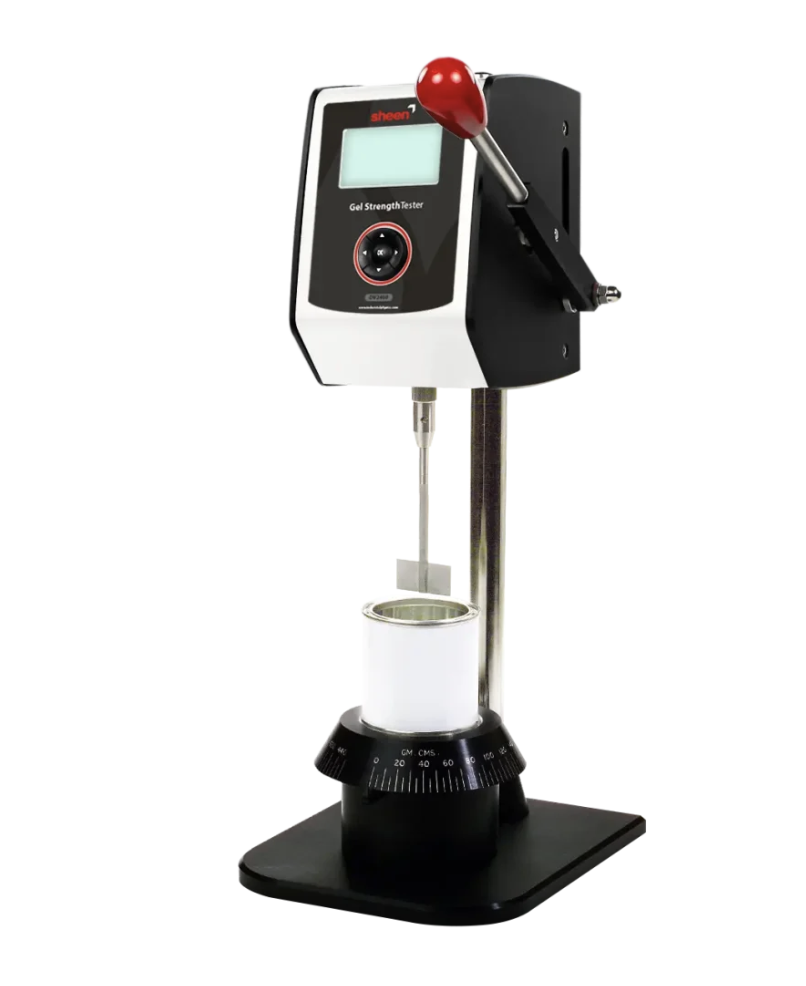

The TQC Sheen Gel Strength Tester DV2400 is a high-precision laboratory instrument designed to measure the yield strength and consistency of semi-solid materials such as thick paints, gels, pastes and putties. Gel strength testing is essential for evaluating product firmness, stability and structural behaviour, helping manufacturers maintain formulation consistency, verify product performance and ensure quality throughout production. The DV2400 delivers fast, repeatable results and is well suited for quality control and research applications across industries including coatings, adhesives, pharmaceuticals and cosmetics. As an improved successor to the Sheen 414N, it features a variable speed range from 0.5 to 5 rpm, providing greater testing flexibility than fixed-speed systems. Lower speeds combined with smaller spindles allow accurate measurement of highly structured materials, while higher speeds and larger spindles enable effective testing of softer or lower-resistance products.
⸻
How It Works
- A 250 ml sample container is securely attached to the turntable using a magnetic fixture.
- The turntable is fitted with a calibrated spring, featuring an engraved measurement scale from 0 to 450 g/cm.
- A flat paddle spindle (4 × 2 cm) rotates automatically at a selected speed between 0.5 and 5.0 rpm.
- As the spindle drives the sample container and turntable, resistance from the material generates torque.
- The torque value stabilizes during rotation and is read directly from the scale, indicating the yield strength and gel consistency of the material.
This controlled rotational method allows reliable and repeatable assessment of gel strength for thick and structured materials.
⸻
Key features & Benefits
- Highly accurate and repeatable results – ensures reliable gel strength measurement for quality control and R&D.
- Easy to use with flexible operation – supports both manual and automatic testing modes for convenience.
- Variable speed control (0.5 – 5.0 rpm) – allows precise testing across a range of material consistencies.
- Clear digital display with backlight – four-line screen ensures easy reading and data interpretation.
- Stable sample positioning – level adapter set included and alternative paddle formats available for versatile testing.
⸻
Technical Specifications
| SKU | CSTDV2400 |
| Operating Temperature | +5 °C – +40 °C / +41 °F – 104 °F |
| Weight | 8,500 g / 18.7 lbs |
| Speed Range | 0.5 – 5.0 rpm |
| Spindle Type | Gel Strength Tester DV2401 |
| Measurement Range | 0 – 450 g/cm |
| Resolution | 10 g/cm |
| Accuracy | ± 2% of full scale |
| Repeatability | ± 1% of full scale |
| Sample Container | Minimum opening diameter required |
| Power Supply | 100 – 240 V / 50 – 60 Hz |
⸻
Accessories – Paddle Options
| Article Number | Paddle ID | Number of Blades | Blade Size (H × W) |
|---|---|---|---|
| CSTDV2402 | D2 | 2 | 10.0 × 30.0 mm |
| CSTDV2403 | D3 | 2 | 10.0 × 20.0 mm |
| CSTDV2404 | D4 | 4 | 50.0 × 55.0 mm |
| CSTDV2405 | D5 | 2 | 20.0 × 20.0 mm |
| CSTDV2406 | D6 | 2 | 40.0 × 40.0 mm |
| CSTDV2407 | D7 | 2 | 50.0 × 20.0 mm |
| CSTDV2408 | D8 | 2 | 3.0 × 40.0 mm |
⸻
Scope of Supply
- CSTDV2400 TQC Sheen Gel Strength Tester
- 250ml sample can
- Standard Spindle (CSTDV2401)
- Handle
- Level adapter Set (1/2 pint, 1 pint)
- Power adapter (100–240 V)
⸻
Manufacturing and Standards
The TQC Sheen Gel Strength Tester DV2400 is engineered and manufactured by TQC Sheen, part of the Industrial Physics Inks & Coatings group, headquartered in the Netherlands. This ensures the product is developed and produced with rigorous European quality standards and technical expertise.
For quality assurance, the DV2400 has been tested according to internal quality protocols and conforms to NEN‑EN‑ISO 9001:2015, certified by DNV GL – Business Assurance, demonstrating a commitment to consistent manufacturing quality and traceability.
⸻
