Description
⸻
How It Works

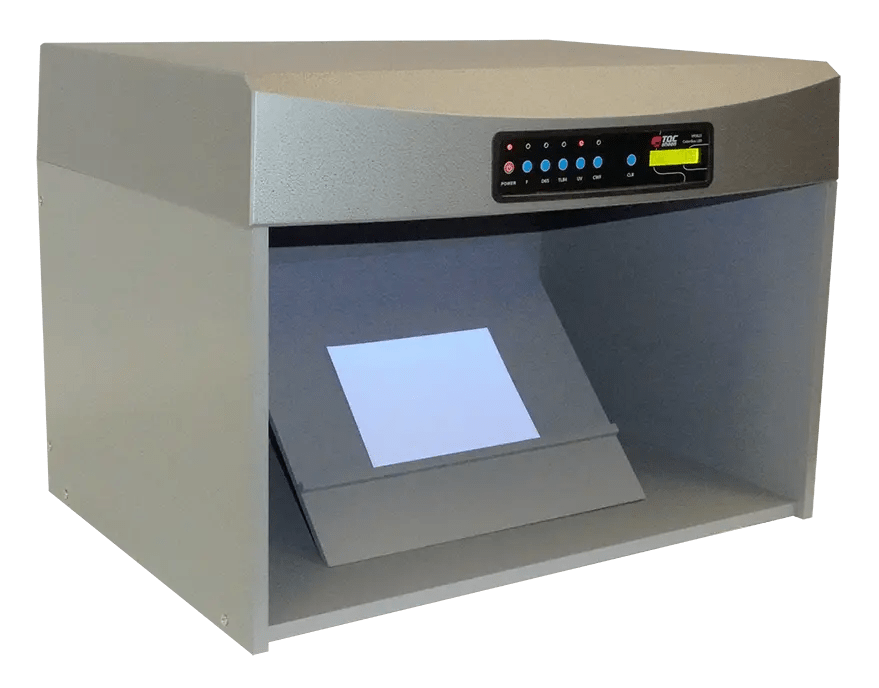

- Place the sample or coated panel inside the cabinet on the angled viewing table.
- Select the desired light source using the control panel.
- The cabinet switches instantly between illumination types without flicker.
- Observe the sample under different lighting conditions to identify colour variation, gloss differences or metamerism.
- Compare multiple samples side by side for approval or quality control.
- Record visual observations for documentation and traceability.
⸻
Key Features & Benefits
- Multiple selectable light sources for comprehensive colour evaluation
- D65 and D5000 daylight simulation for accurate colour matching
- TL84 and incandescent lighting for indoor and retail lighting conditions

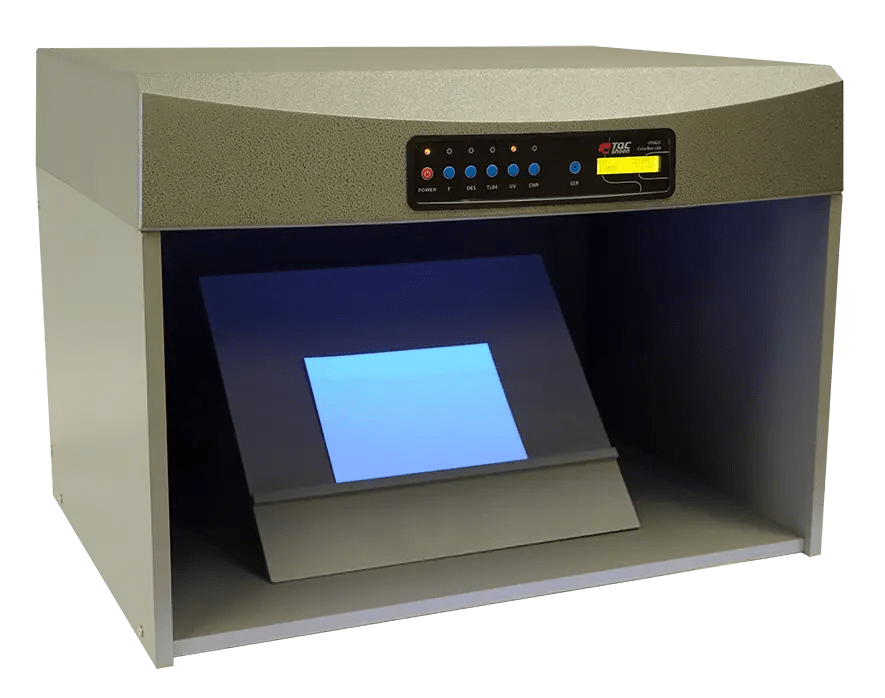

- UV illumination for detecting fluorescent brighteners
- Flicker-free switching ensures stable viewing conditions
- Runtime counters monitor usage of individual light sources
- Available in 60 cm and 120 cm models to suit different sample sizes
- Robust construction for laboratory and quality control use
⸻
Technical Specifications
| Colorbox Illuminated Assessment Cabinets | ||
|---|---|---|
| Model | CSTVF0625 | CSTVF1225 |
| Net Weight* | 24 kg | 60 kg |
| Gross Weight* | 36 kg | 86 kg |
| Power Supply | AC 110/220 V, 50/60 Hz | |
| Inner Dimensions (L × W × H) | 693 × 550 × 501 mm | 1318 × 622 × 802 mm |
| Outer Dimensions (L × W × H) | 663 × 492 × 358 mm | 1286 × 591 × 590 mm |
* Net weight refers to the cabinet packaged in a standard cardboard carton.
* Gross weight refers to the cabinet packaged in a wooden crate.
⸻
Scope of Supply
- TQC Sheen Colorbox Illuminated Assessment Cabinet (60 cm or 120 cm model)
- 2x LED tube D65 6500K
- 2x LED tube TL84 4000K
- 2x LED tube CWF 4150K
- LED tube UV
- 4x LED sun setting incandescent bulbs Incandescent equivalent 2700K
- 45° Angled removable viewing table
- Screw driver
- Power cable
- User manual
⸻
Accessories and Spare parts
- CSTVF0635 LED tube 60 cm TL83 warm white – To replace TL84 store lighting
- CSTVF1235 LED tube 120cm TL83 warm white – To replace TL84 store lighting
- CSTVF0630 LED tube 60 cm D65 6500K
- CSTVF0631 LED tube 60 cm TL84 4000K
- CSTVF0633 LED tube 60 cm CWF 4150K
- CSTVF0634 LED tube 60 cm UV
- CSTVF1230 LED tube 120 cm D65 6500K
- CSTVF1231 LED tube 120 cm TL84 4000K
- CSTVF1233 LED tube 120 cm CWF 4150K
- CSTVF1234 LED tube 120 cm UV
- CSTVF1232 LED bulb sun setting incandescent
- CSTVF0635 LED tube 60 cm TL83 warm white
- CSTVF1235 LED tube 120 cm TL83 warm white

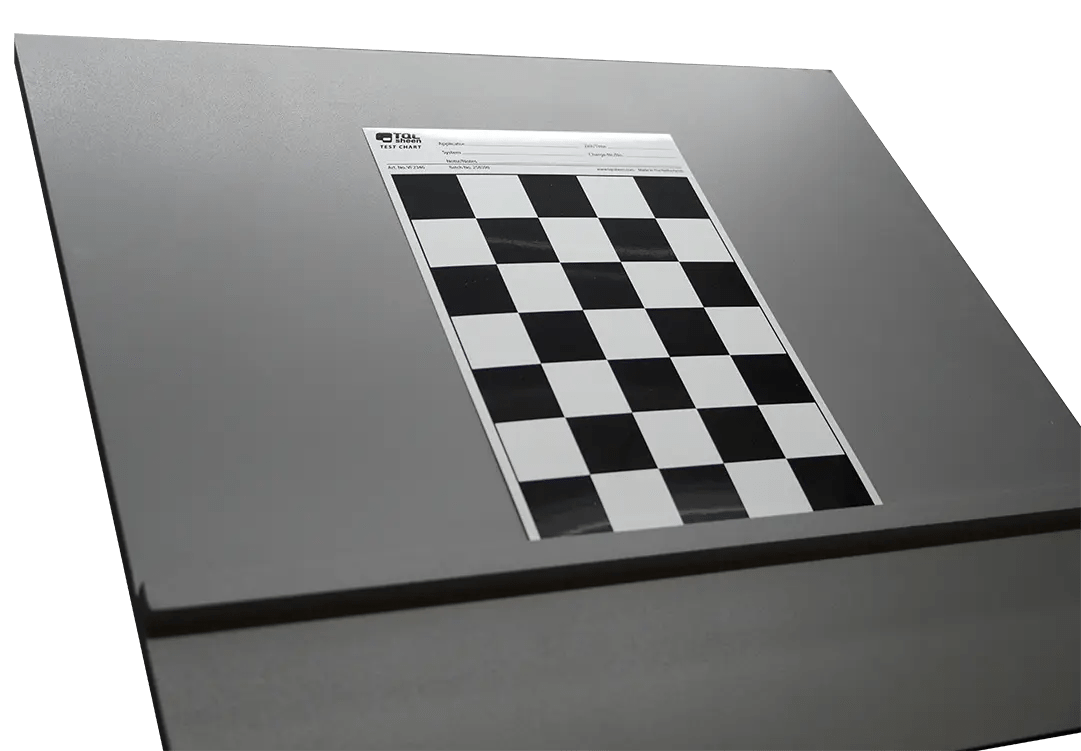

- CSTVF0603 45° sample table
⸻
Manufacturing and Standards
The TQC Sheen Colorbox Illuminated Assessment Cabinets are manufactured by TQC Sheen, part of Industrial Physics, a global supplier of testing and inspection instruments for quality control applications. The cabinets are designed and built for long-term use in laboratory, production and quality control environments. They support internationally recognised visual evaluation practices and are suitable for colour and appearance assessment in accordance with commonly applied ASTM and ISO methods. These light cabinets are designed to support ASTM D1729 and ISO 3664 The robust construction and stable illumination performance ensure reliable and repeatable visual inspection under standardised lighting conditions.
