Description

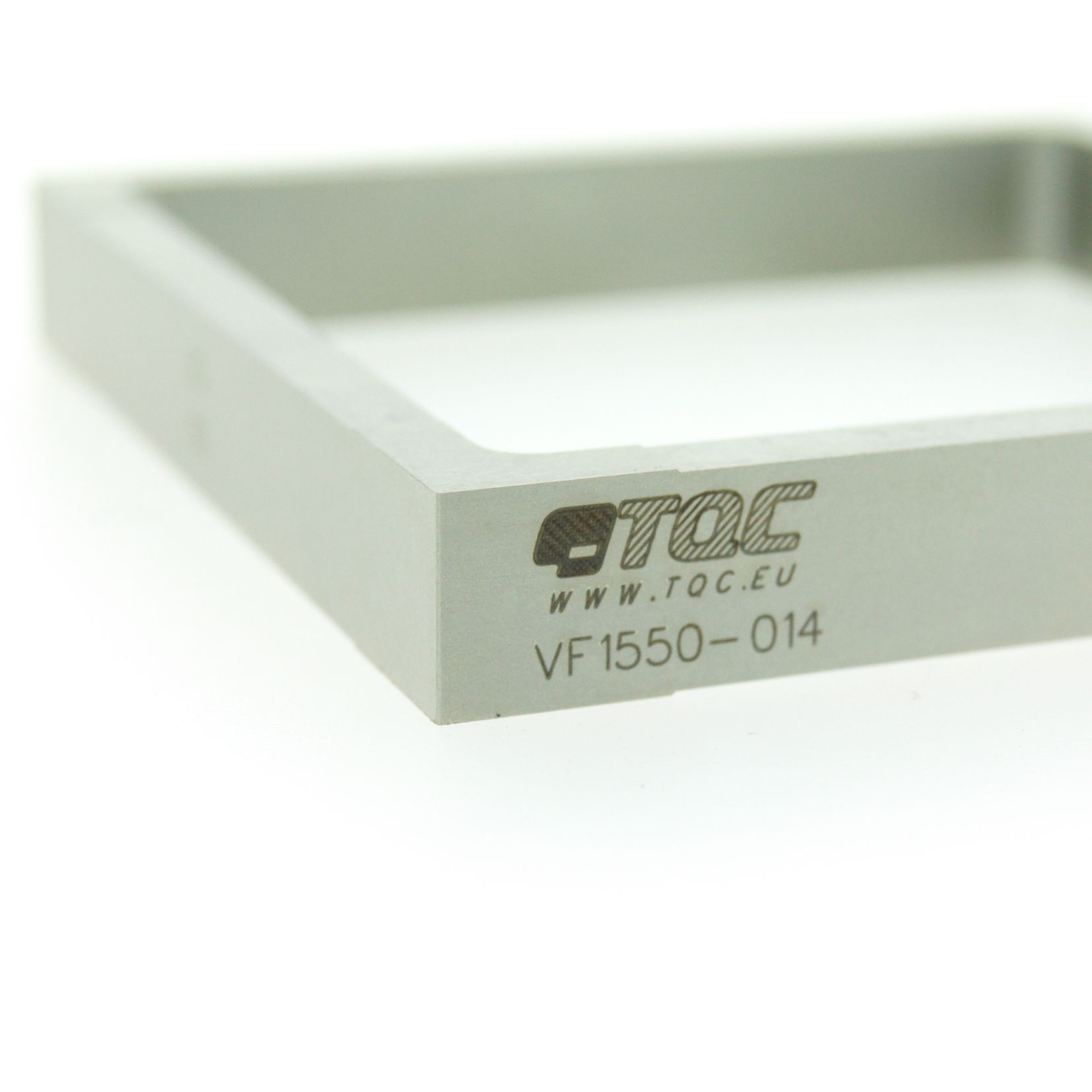

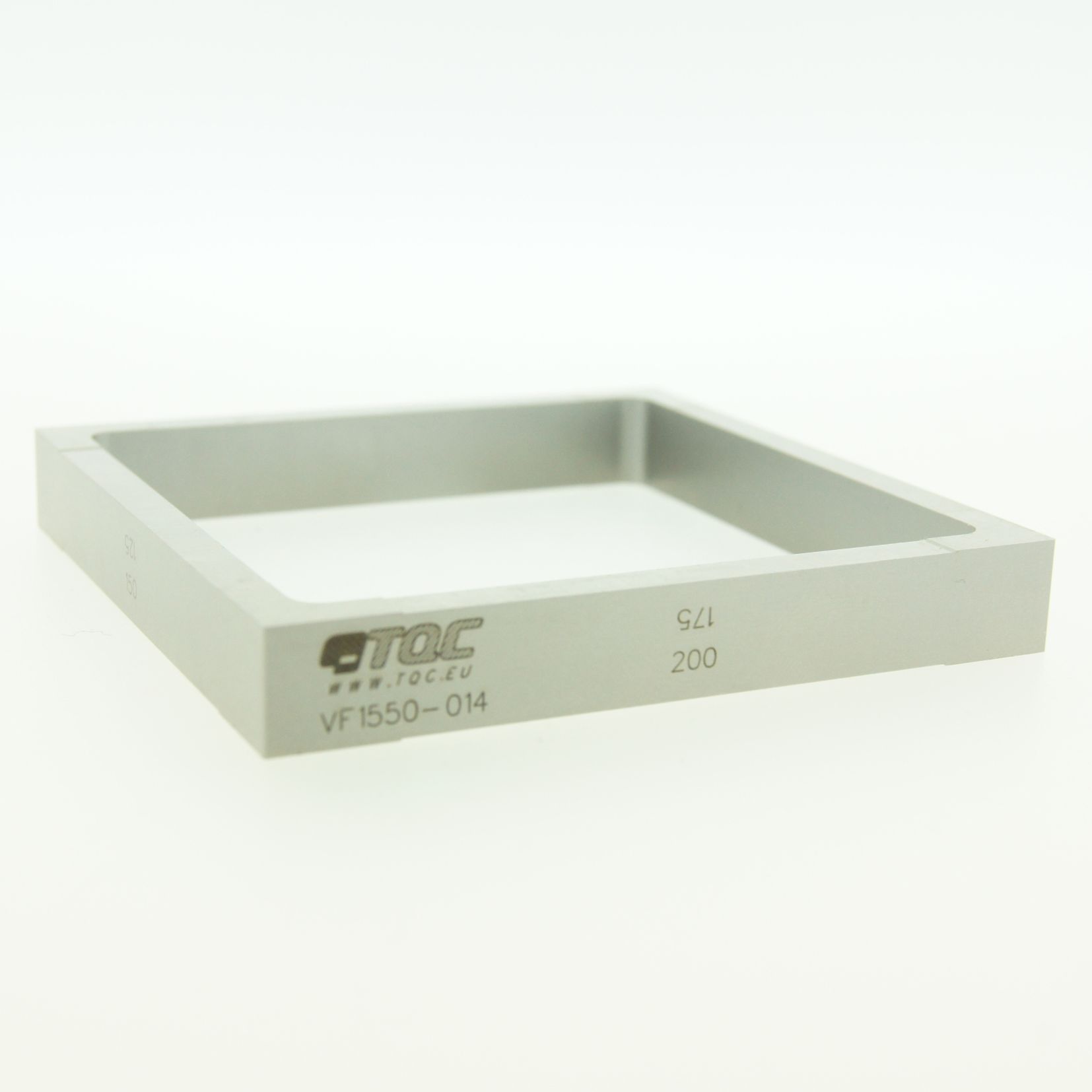

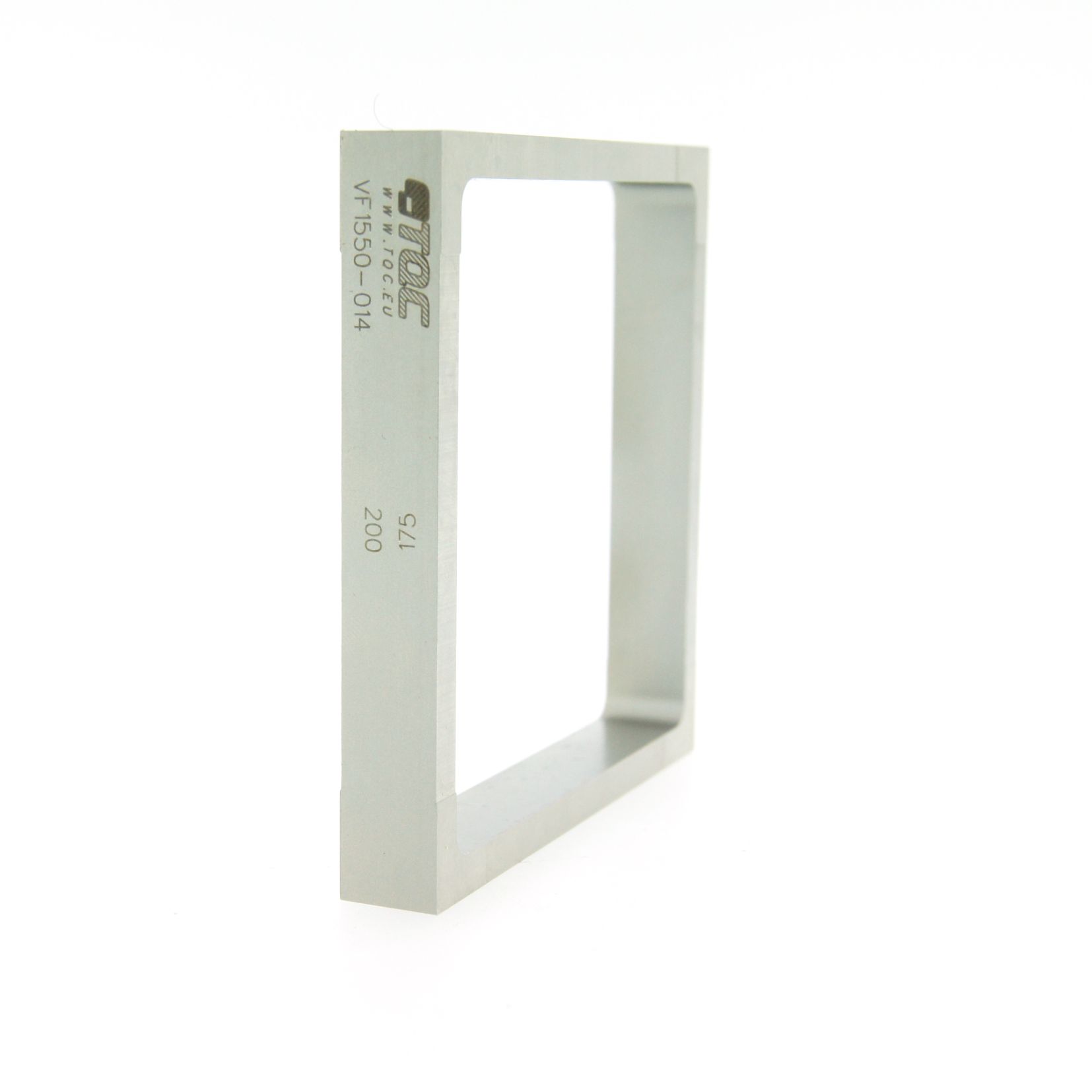

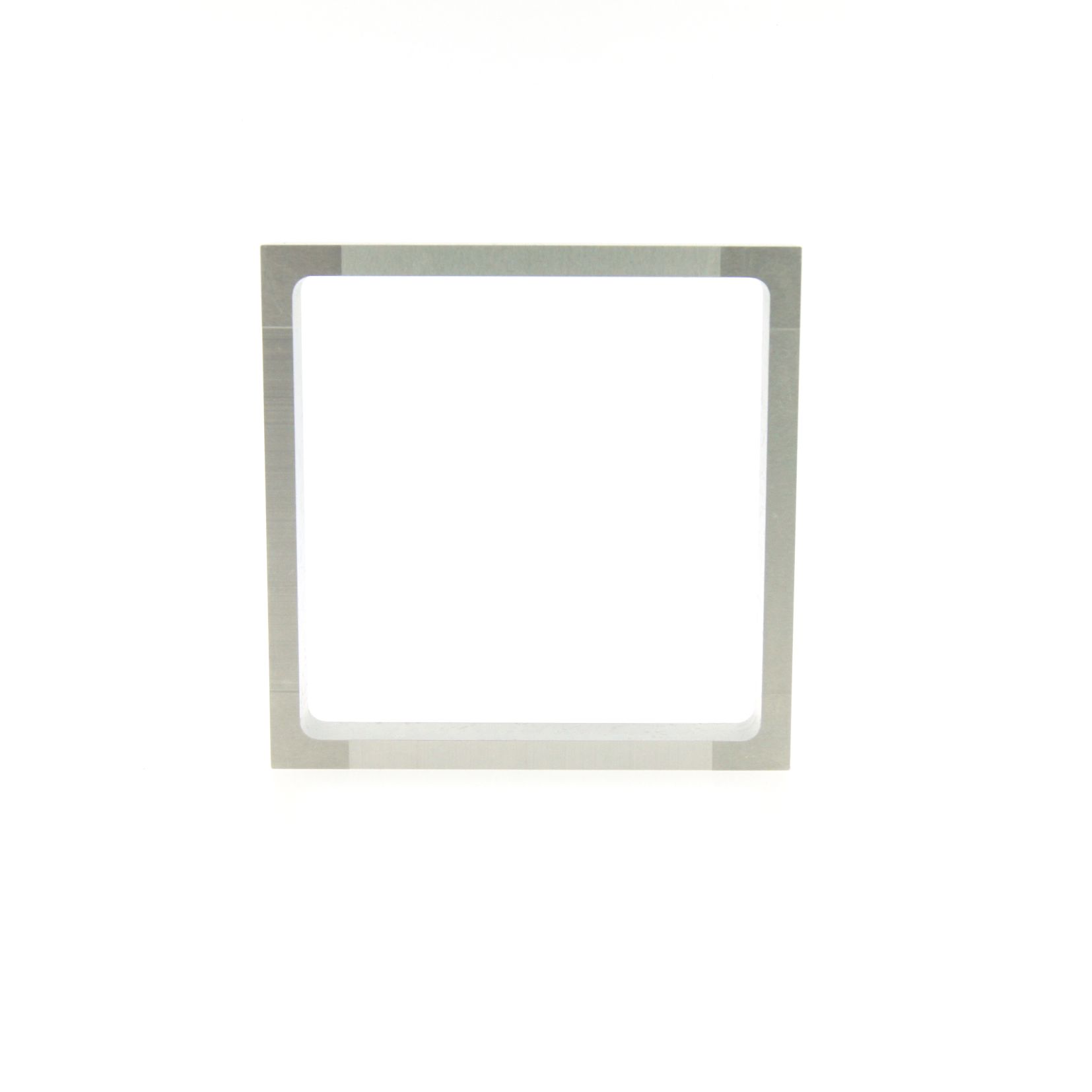

The TQC Sheen 8-Sided Film Applicator (Octoplex) is a versatile and precision-engineered tool designed for applying uniform wet films with multiple thickness options on test charts and substrates. Featuring eight calibrated gap edges on a single applicator, the Octoplex enables rapid switching between film thicknesses without the need for multiple separate applicators. This makes it ideal for coatings laboratories, quality control departments and production environments where comprehensive comparison across different film builds is required.
The unique Octoplex design supports efficient sample preparation for a wide range of tests, including viscosity evaluation, curing studies, adhesion assessments and visual inspection. Whether used manually or in conjunction with automatic film applicators, this tool enhances consistency, reduces preparation variability and improves repeatability of wet film application.
⸻
How It Works
- Place the test chart or substrate on a level work surface or on the bed of an automatic film applicator.
- Apply a sufficient amount of coating or liquid sample along the edge corresponding to the desired gap thickness.
- Select the appropriate side of the 8-Sided Film Applicator to match the required wet film thickness.
- Draw the applicator steadily across the panel in a single motion, allowing sample to pass through the calibrated gap.
- The calibrated edge distributes the liquid into a uniform and controlled wet film across the panel.
- Allow the applied film to level or dry before performing further testing or evaluation.
By incorporating eight gap options in one tool, the Octoplex simplifies multi-thickness testing and supports efficient test workflows.
⸻
Key Features & Benefits
- Eight calibrated gap edges in one applicator
- Supports multiple wet film thicknesses without changing tools
- Built in reservoir
- Produces consistent and reproducible wet films
- Easy to clean
- Enhances efficiency and reduces film application variability
- Suitable for manual or automated use
| Octoplex Applicators, 8-sided (eight gaps) | ||
| Gap sizes | 60 mm Film Width | |
| 25/50/75/100/125/150/175/200 µm | CSTVF1550 | |
Note: The CSTVF1550 has a total width of the film 60 mm + 2 x 7.5 mm.
⸻
Scope of Supply
•1 × 8-Sided Film Applicator Octoplex
•Protective storage sleeve or pouch
•Handling and use instructions
⸻
Accessories
- TQC Sheen Test Charts
- Automatic Film Applicators for automated, reproducible coating application
- TQC Sheen Glass Film Application Table, for manual application
- TQC Sheen Color box, for visual assessment
⸻
Manufacturing and Standards
The 8-Sided Film Applicator Octoplex is manufactured by TQC Sheen, part of Industrial Physics, and engineered for accurate, repeatable wet film application of coatings and liquid materials. Its multi-gap configuration supports established sample preparation methods used in coatings laboratories, quality control departments and industrial production environments. According to the following standard;
⸻
Links
Productsheet | TQC Sheen Octoplex Applicator
