Description

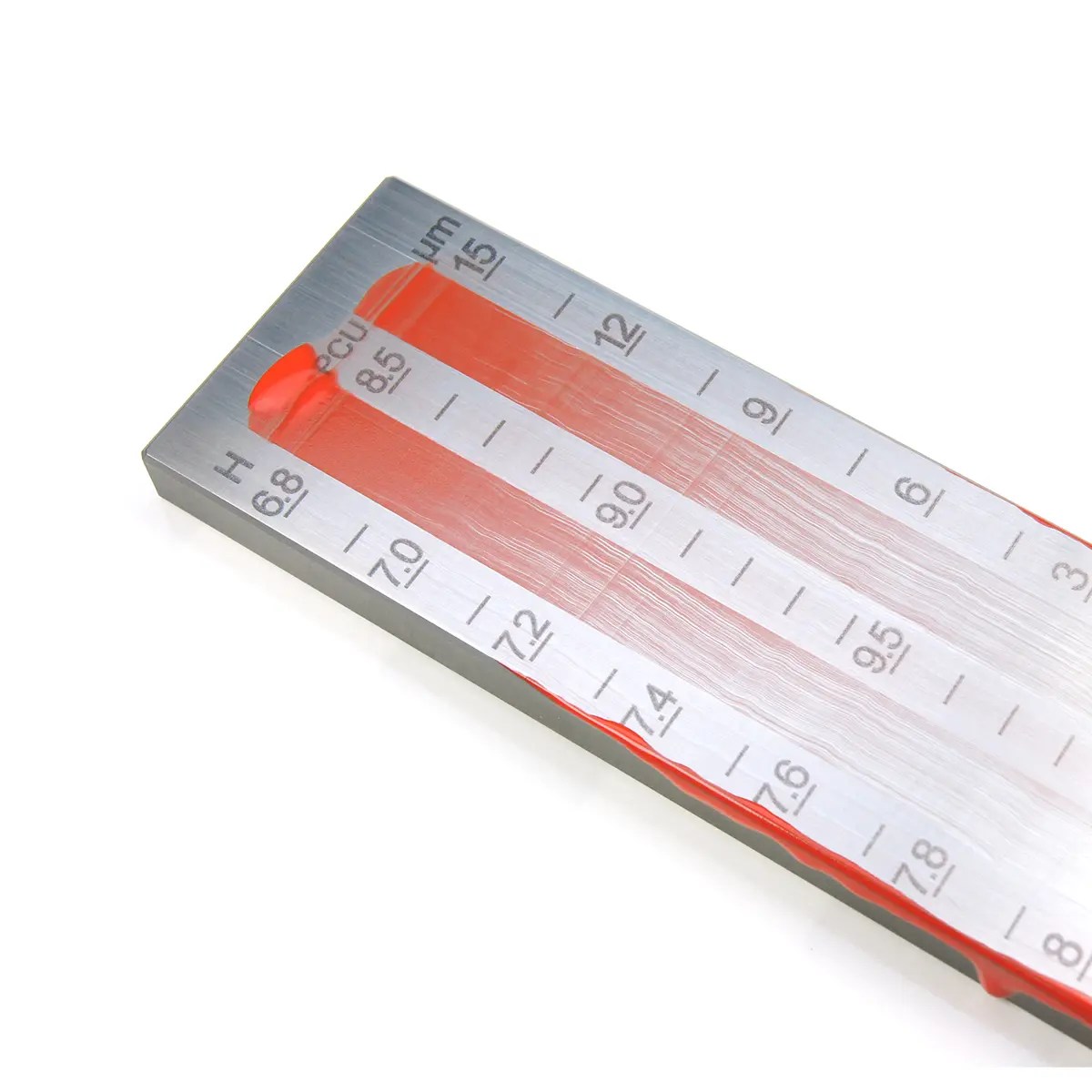

The TQC Sheen Grindometers (also known as a fineness of grind gauge) is a simple, reliable inspection tool used to evaluate the dispersion quality and particle size distribution in liquid coatings, paints, inks and similar formulations. By measuring the maximum particle profile height across a set of calibrated steps, this gauge helps determine grind or dispersion fineness — a critical parameter in quality control and formulation processes.
Grind gauges provide rapid, visual assessment of dispersion consistency, helping manufacturers monitor product stability, batch uniformity and optimal pigment wetting. This tool is essential in coating laboratories, production lines and quality control environments for consistent quality assurance of paint and coating products.
⸻
How It Works
- Select the appropriate gauge scale based on your test method or formulation requirement.
- Place a small amount of sample between the instrument’s notched measurement scale.
- Draw scraper across the gauge, ensuring the sample fills the notches.
- Visually inspect the filled steps and identify the highest step that is completely filled without voids.
- Record the corresponding channel number or micron value as the fineness of grind.
- Compare readings against internal specifications for quality control.
This direct, visual method allows quick evaluation of particle dispersion quality without complex instrumentation.
⸻
Key Features & Benefits
- Rapid visual measurement of particle size and dispersion quality
- Calibrated steps for consistent fineness of grind evaluation
- Easy to use with minimal training required
- Essential for QC and production environments
- Helps monitor batch uniformity and product stability
- Lightweight and durable for frequent laboratory use
⸻
Technical Specifications
| Grind Gauge – Technical Data | |
|---|---|
| Base Dimensions | 175 × 60 × 12 mm (with 120 mm groove length) |
| Scraper Dimensions | 75 × 38 × 8 mm |
| Accuracy | ± 2 µm |
⸻
Scope of Supply
- Grind gauge instrument (selected scale)
- Scraper
- Protective storage sleeve
- Calibration Certificate
- Instructions for use
⸻
Available Grind Gauges
| Groove type | Scale | Article number | µm | H | PCU |
| Double | 0 – 15 | CSTVF2110 | X | X | X |
| Double | 0 – 25 | CSTVF2111 | X | X | X |
| Double | 0 – 50 | CSTVF2112 | X | X | X |
| Double | 0 – 100 | CSTVF2113 | X | X | X |
| Double | 0 – 250 | CSTVF2118 | X | X | X |
| Double | 0 – 500 | CSTVF2124 | X | ||
| Single | 0 – 15 | CSTVF2104 | X | ||
| Single | 0 – 25 | CSTVF2105 | X | ||
| Single | 0 – 50 | CSTVF2106 | X | ||
| Single | 0 – 100 | CSTVF2107 | X | ||
| Single | 0 – 250 | CSTVF2108 | X | ||
| Single | 0 – 500 | CSTVF2109 | X | ||
| Wide | 0 – 15 | CSTVF2120 | X | X | |
| Wide | 0 – 25 | CSTVF2121 | X | X | |
| Wide | 0 – 50 | CSTVF2122 | X | X | |
| Wide | 0 – 100 | CSTVF2123 | X | X | |
| Wide | 0 – 250 | CSTVF2125 | X | X |
⸻
Accessories / Spare Parts
- CSTVF2117 Scraper

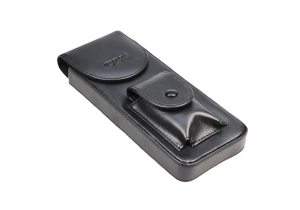

- CST2114 Pouch for Grindometer
- CSTAB3075 Grindometertool for Automatic Film Applicator
⸻
Manufacturing and Standards
The TQC Sheen Grind Gauge (Fineness of Grind Gauge) is manufactured by TQC Sheen, part of Industrial Physics, and is designed for professional use in coating formulation, production and quality control environments. The instrument supports fineness of grind evaluation in accordance with commonly applied international test methods and specifications, including:
These standards are widely used for assessing dispersion quality and particle size in paints, coatings, inks and related liquid materials, supporting consistent and repeatable quality control processes.
