Description

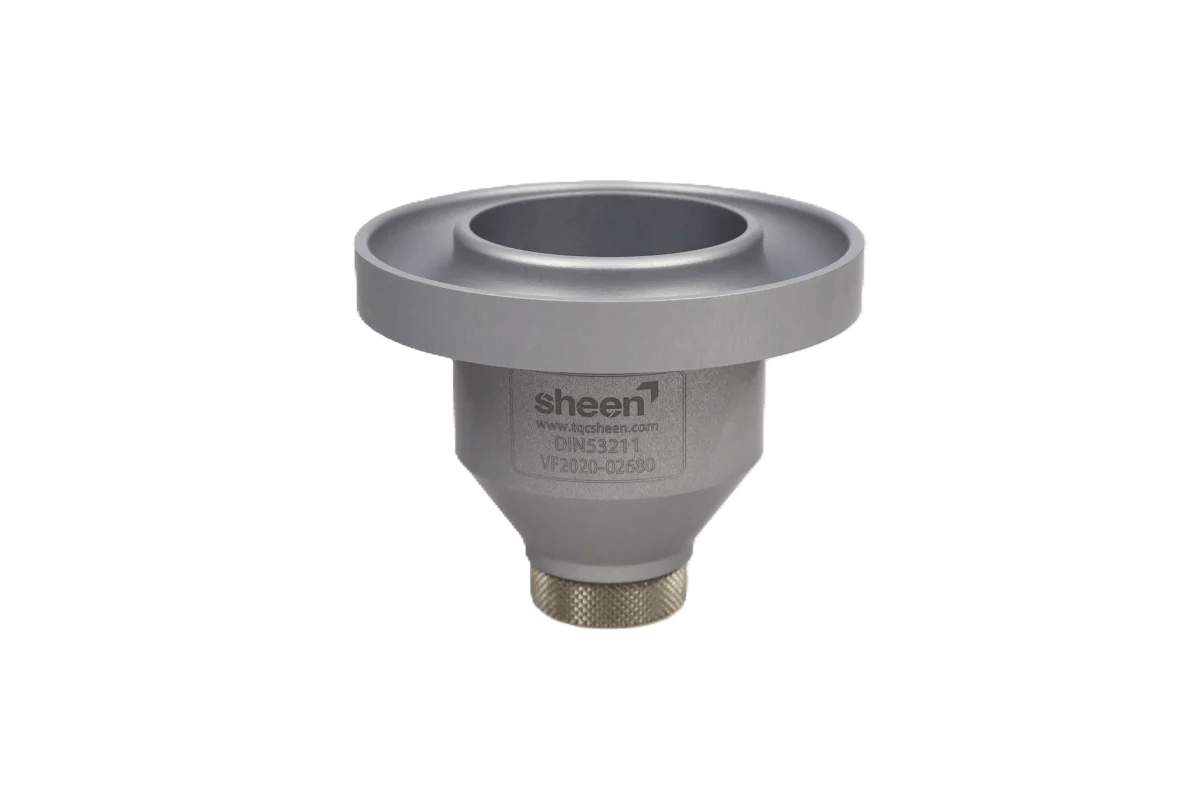

The TQC Sheen Viscosity Cup DIN 53211 (Interchangeable Nozzle) is a versatile and high‑quality flow cup designed to measure the viscosity of paints, coatings, lacquers and similar fluids. The cup features a durable body (titanium anodized aluminum) and uses interchangeable stainless‑steel nozzles, allowing you to choose the appropriate orifice size for your specific viscosity testing needs. The interchangeable-nozzle design ensures flexibility and precision across a wide viscosity range — ideal for production, quality control, and laboratory environments.
⸻
How it Works
- Select and mount the appropriate stainless‑steel nozzle for the fluid’s expected viscosity.
- Place the viscosity cup securely on a tripod or suitable stand, ensuring it is perfectly vertical and level.
- Cover the nozzle with your finger to stop the flow temporarily, then level off the surface by wiping it smoothly with a glass.
- Remove your finger from the nozzle and start a timer as the fluid begins to flow out.
- Measure the flow time until the fluid stops flowing (flow break).
- Use a conversion chart or disc to convert flow time to kinematic viscosity (cSt), under controlled temperature conditions.
⸻
Key features & benefits
- Interchangeable stainless‑steel nozzles — flexibility to match nozzle orifice to fluid viscosity
- Durable titanium‑anodized aluminum cup body — robust and suitable for industrial use
- Built-in reservoir – for overflowing liquids
- Each cup engraved with a unique serial number — ensures authenticity and traceability
- Option for calibration certificate on request (in combination with interchangeable nozzle)
- Similar to DIN53211 Standard
| Specification | Detail |
|---|---|
| SKU cup excl. nozzle | CSTVF2020 |
| Cup material | Titanium anodized aluminum |
| Nozzle retainer | Stainless steel (interchangeable) |
| Nozzle | Interchangeable (not included, please find options below) |
| Orifice diameters (available nozzles) | Ø 1 mm, 2 mm, 3 mm, 4 mm, 5 mm, 6 mm, 7 mm, 8 mm |
| Cup volume | 100 ml (nominal) |
| Max width | 84mm |
| Total height | 74mm |
| Weight | 226 grams |
| Protective case | Hard plastic storage case with soft interior padding |
| Typical use | Paints, coatings, lacquers, similar fluids |
| Compatibility | Designed similar to DIN 53211 flow‑cup standard |
⸻

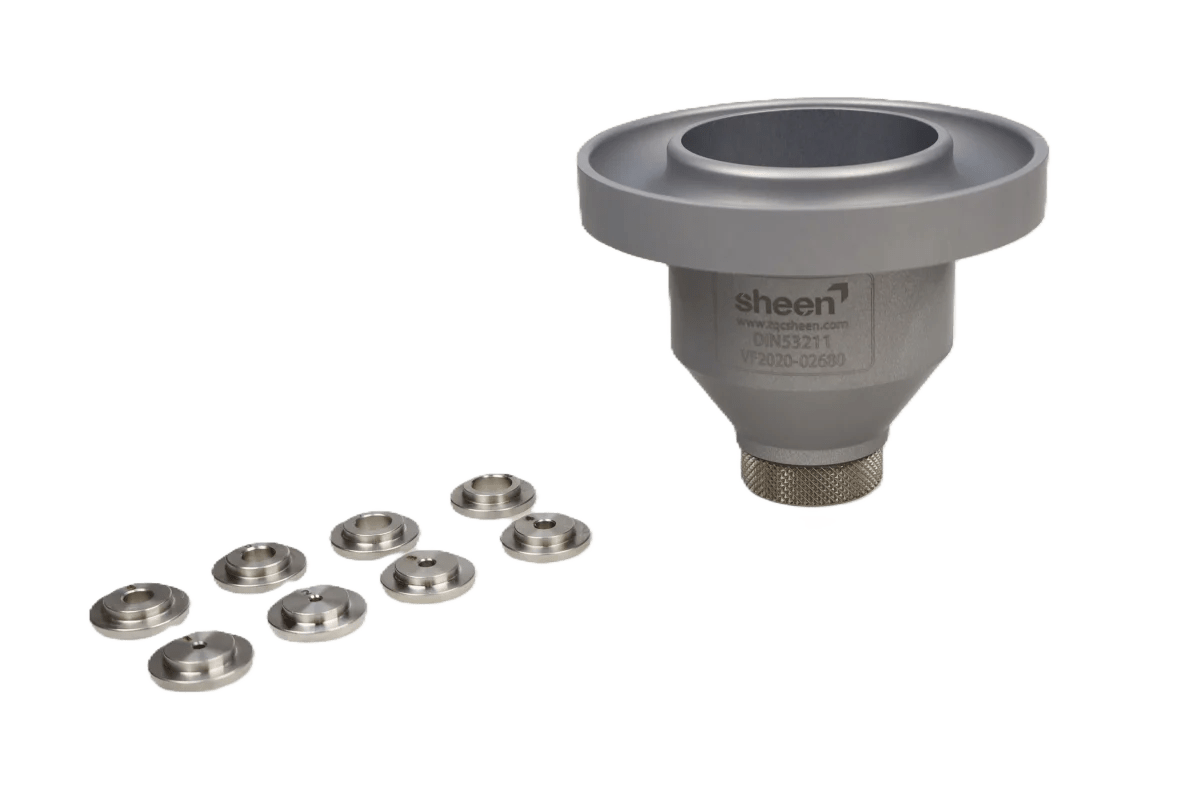

Interchangeable nozzles
| SKU | Orifice Diameter | Description |
|---|---|---|
| CSTVF2181 | 1 mm | Interchangeable Nozzle, similar to DIN 53211 |
| CSTVF2022 | 2 mm | Interchangeable Nozzle, similar to DIN 53211 |
| CSTVF2023 | 3 mm | Interchangeable Nozzle, similar to DIN 53211 |
| CSTVF2024 | 4 mm | Interchangeable Nozzle, similar to DIN 53211 |
| CSTVF2025 | 5 mm | Interchangeable Nozzle, similar to DIN 53211 |
| CSTVF2026 | 6 mm | Interchangeable Nozzle, similar to DIN 53211 |
| CSTVF2027 | 7 mm | Interchangeable Nozzle, similar to DIN 53211 |
| CSTVF2028 | 8 mm | Interchangeable Nozzle, similar to DIN 53211 |
⸻
Accessories
CSTCL0030 | Calibration Certificate (available on request in combination with nozzle)
CSTVF2061 | Tripod Stand for Viscosity Cups
CSTVF2062 | Ring Stand for Viscosity Cups
CSTVF2067 | Temperature Control Jacket for DIN & ASTM
CSTVF2068 | Temperature Control Jacket for ISO & AFNOR
CSTDI0076 | Stopwatch
CSTVF2053 | Viscosity Conversion Disc
CSTTE0027 | Precision Thermometer
CSTF2063 | Glass Plate GP20
CSTVF2061 | Tripod Stand for Viscosity Cups
CSTVF2062 | Ring Stand for Viscosity Cups
CSTVF2067 | Temperature Control Jacket for DIN & ASTM
CSTVF2068 | Temperature Control Jacket for ISO & AFNOR
CSTDI0076 | Stopwatch
CSTVF2053 | Viscosity Conversion Disc
CSTTE0027 | Precision Thermometer
CSTF2063 | Glass Plate GP20
⸻
Manufacturing and Standards
The TQC Sheen Viscosity Cups DIN 53211 with interchangeable nozzle are manufactured in the Netherlands by Industrial Physics, a leading provider of coating test equipment. Each cup is produced under strict quality control and is engraved with a unique serial number — ensures authenticity and traceability.
⸻
