Description

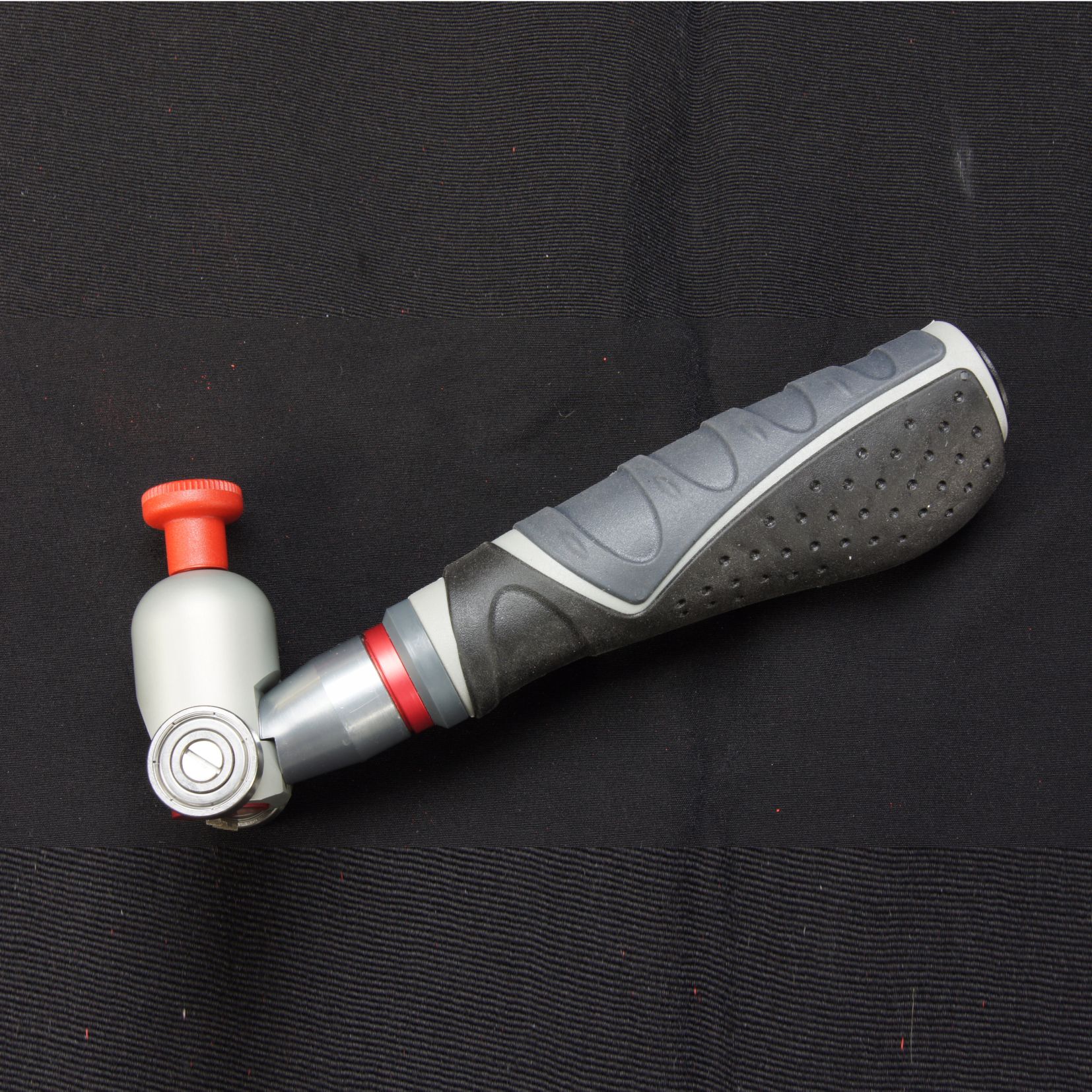

The TQC Sheen Cross Cut Adhesion Test Kit CC3000 is designed to evaluate the adhesion of dry paint or coating layers to their substrate. The TQC Sheen Cross Cut Adhesion Test Kit is available in three variants; CC1000, CC2000 and CC3000. The CC3000 assures the most reproducible results with the guidance of two ball bearings, ideal if the test is performed by constantly changing persons.
⸻
How it works
Two series of parallel cuts are made with the selected blade, resulting in a defined grid pattern. On soft substrates, the area is brushed lightly. On hard substrates, adhesive tape is applied over the lattice and removed according to standard procedures. The amount of coating detachment is then evaluated visually or with the supplied magnifier. The CC3000 is a fully adjustable cutter whose cutting depth can be fine-tuned and the blade holder is guided by dual ball bearings for repeatable and reproducible results.
⸻
Key features & benefits
• Blade holder guided by two ball bearings – ensures consistent pressure and reproducible cuts.
• Cutting knives can be exchanged quickly without additional tools
• Suitable for both soft and hard substrates
• Adjustable to measure coatings up to 250 µm thick
• Ergonomic grip for comfortable and controlled operation
• Provides consistent and repeatable cross-cut patterns
• Compatible with ISO 2409 and ASTM D3359 adhesion standards
⸻
Technical Specifications
| Specification | Value |
|---|---|
| Model | CC3000 |
| Test Standards | ISO 2409, ASTM D3359 |
| Substrates | Hard and soft materials (metal, wood, plastic) |
| Materials | Stainless steel cutting blade, robust body |
| Evaluation | Visual assessment after brushing or tape test |
⸻
What’s Included
The CC3000 Cross-Cut Adhesion Tester is available in two versions; the basic kit and the standard kit
The Basic Kit | SKU nr: CSTSP1665
• Case
• CC3000 Cutter Grip (excludes blades)
The Standard Kit | SKU nr: CSTSP1714
• Case
• CC3000 Cutter Grip (excludes blades)
• Nylon Brush
• Illuminated magnifier
• Adhesive tape (adhesion to steel 4.3N/cm)
⚠️ Important: the blades are not included within the kits and must be ordered separately. Please find the overview below.
⸻
Blades
Details of available cross-cut blades, including blade type, teeth spacing, standards compliance, and recommended coating thickness for hard and soft substrates.
Blade Options (Suitable for CC2000 and CC3000)
| Art. No. | No. of Teeth | Teeth Distance | Standards | Coating Thickness on Hard Substrates | Coating Thickness on Soft Substrates |
|---|---|---|---|---|---|
| CSTSP1702 | 6 | 1 mm/ 0.039″ | ISO 2409, ASTM D3359 | ISO 2409 0–60 µm, ASTM D3359 0–50 µm | – |
| CSTSP1703 | 6 | 2 mm/ 0.079″ | ISO 2409, ASTM D3359 | ISO 2409 61–120 µm, ASTM D3359 50-125 µm | ISO 2409 0–60 µm |
| CSTSP1704 | 6 | 3 mm / 0.12″ | ISO 2409 | ISO 2409 121–250 µm | – |
| CSTSP1705 | 11 | 1 mm / 0.039″ | ASTM D3359 (<2009) | ASTM D3359 0–50 µm | – |
| CSTSP1706 | 11 | 1.5 mm / 0.059″ | ASTM D3359 (<2009) | ASTM D3359 50–125 µm | – |
⸻
Accessories
• CSTSP3007 Adhesion tape, single roll, adhesion to steel 4.3 N/cm (included in Standard Kit)
• CSTSP3010 Adhesion tape, set of 3 rolls, adhesion to steel 4.3 N/cm
• CSTSP3020 Adhesion tape, single roll, adhesion to steel 7.6 N/cm
• CSTSP1710 Nylon Brush for Cross Cut Adhesion Test (included in Standard Kit)
• CSTSP9700 Lighted Magnifier 2.5x (included in Standard Kit)
⸻
