Description

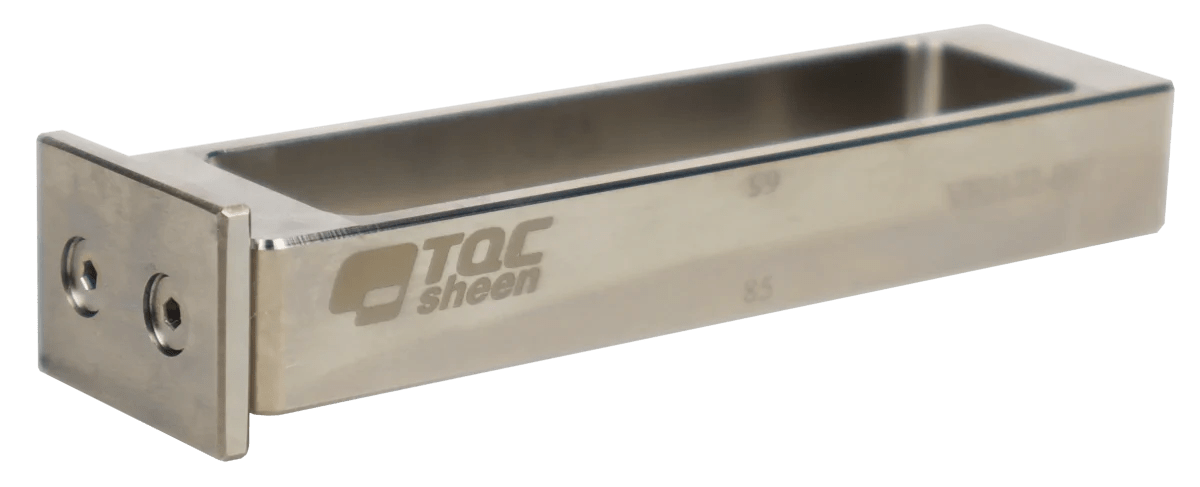

The TQC Sheen 4-Sided Film Applicators are precision tools designed to apply uniform wet films of coatings, paints, varnishes and other liquid materials across test panels and substrates. Featuring four calibrated gap edges on a single applicator, this versatile design allows users to switch easily between different wet film thicknesses without changing tools. This makes the 4-Sided Film Applicator ideal for formulation testing, quality control, comparative studies and laboratory workflows where multiple film thicknesses are required on a single test panel.
These applicators are suitable for manual application as well as integration with automatic film applicators, helping to improve consistency, reduce variability and ensure reproducible test results across different film thicknesses.
⸻
How It Works

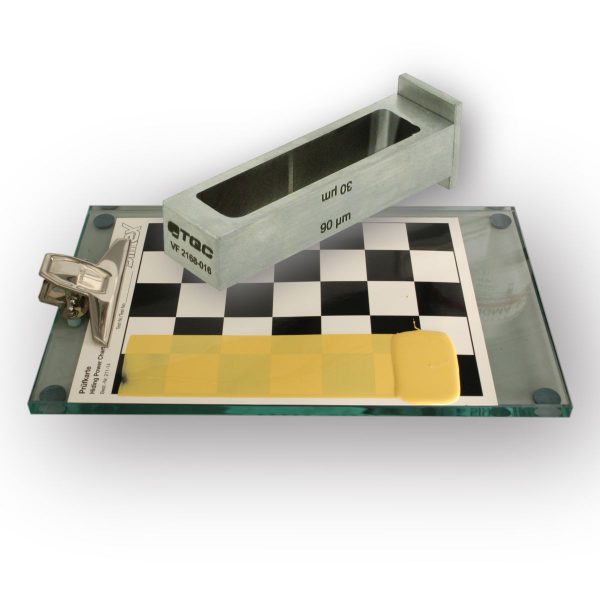

- Place the test chart or substrate on a level surface or on the base of an automatic film applicator.
- Select the correct side of the 4-Sided Film Applicator to match the intended wet film thickness.
- Apply a sufficient amount of coating sample inside the reservoir to the desired gap thickness.
- Draw the applicator steadily across the panel in one smooth motion.
- The calibrated gap edge distributes the sample into a uniform wet film.
- Allow the applied film to level or dry before further evaluation.
By providing multiple calibrated gaps in one tool, this applicator supports flexible and repeatable film preparation.
⸻
Key Features & Benefits
- Four calibrated gap edges in a single applicator
- Guided support (removable) for straight application
- Custom options available
- Produces uniform and reproducible films for quality testing
- Suitable for manual or automatic use
- Easy to clean
- Durable construction for frequent lab and production use
⸻
Quadruplex 4-sided film applicator models
| Gap sizes | Film width | |
| 60 mm | 80 mm | |
| 15/30/60/90 µm | CSTVF2173 | CSTVF2168 |
| 30/60/90/120 µm | CSTVF2174 | CSTVF2169 |
| 50/100/150/200 µm | CSTVF2175 | CSTVF2170 |
| 100/200/300/400 µm | CSTVF2179 (Dual, 2 x 60mm) | – |
| Custom µm * | CSTVF2167* | CSTVF2172* |
*Customised 4-sided applicators
Note: The total applicator width is the film width + 2 x 20 mm

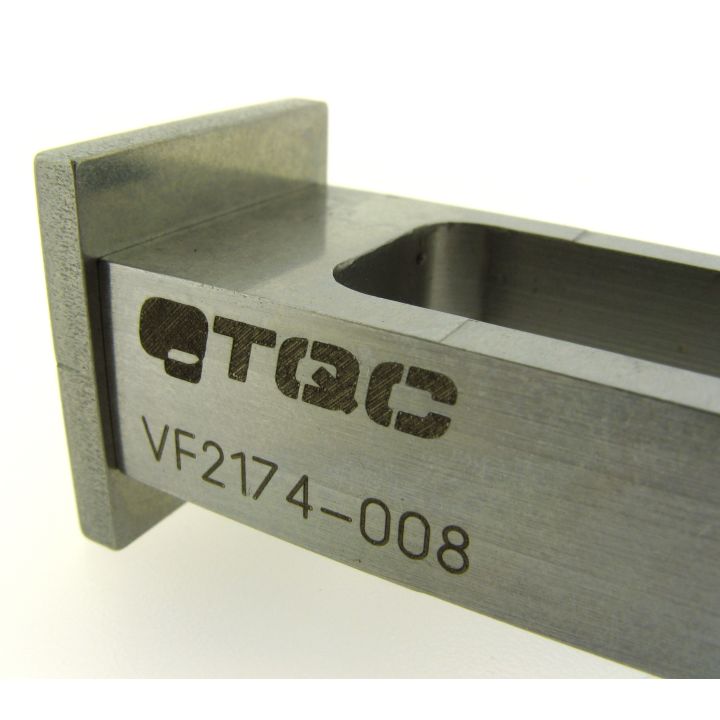

All applicators are made from high-grade stainless steel, with an accuracy of ± 2 µm.
⸻
Scope of Supply
•1 × 4-Sided Film Applicator (multiple calibrated gaps)
•Protective storage sleeve or pouch
⸻
Accessories
- TQC Sheen Test Charts
- Automatic Film Applicators for automated, reproducible coating application
- TQC Sheen Glass Film Application Table, for manual application
- TQC Sheen Color box, for visual assessment
⸻
Manufacturing and Standards
The 4-Sided Film Applicators are manufactured by TQC Sheen, part of Industrial Physics, and engineered for accurate and repeatable wet film application of coatings and liquids. Their multi-gap design supports established sample preparation practices in laboratories, quality control departments and industrial production environments. According to the following standards;
⸻
