Description

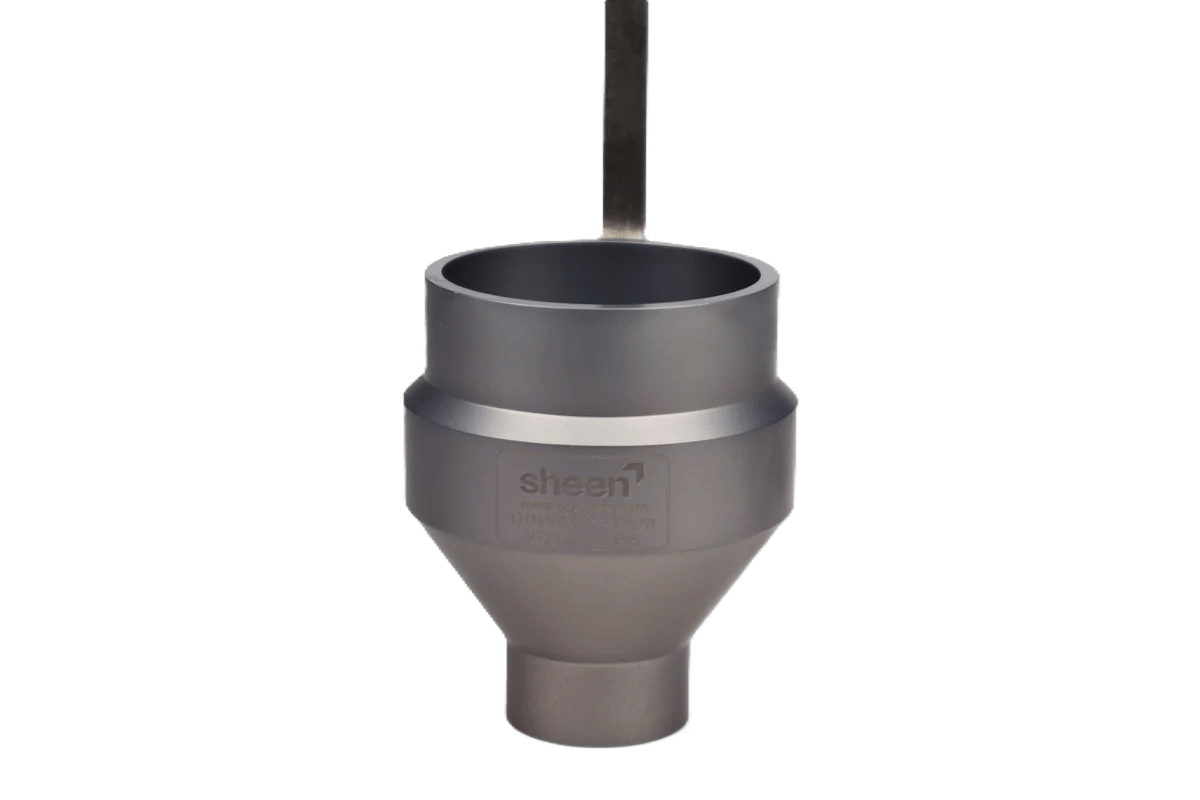

The TQC Sheen DIN 53211 Immersion Viscosity Cup is a dip/immersion-type flow cup designed to measure the viscosity of paints, coatings, lacquers, inks and other liquid coatings. Available in durable titanium-anodized aluminum or stainless-steel variants, each cup is equipped with a fixed stainless-steel nozzle and a long loop handle. The cup is portable and ideal for quick viscosity checks directly in containers or vats — suitable for production-floor use, quality control or site-inspection.
The Ø 4 mm orifice is according to DIN 53211, there are different sizes available where the inner dimensions are similar to DIN 53211.
⸻
How it Works
- Immerse the cup completely into the liquid to be tested, using the long handle for safe handling.
- Lift the cup vertically from the liquid and simultaneously start timing as the liquid begins to drain through the nozzle.
- Record the flow time until the liquid stream breaks (flow-break point).
- Use a viscosity conversion chart or disc to convert flow time to kinematic viscosity (in cSt).
- For consistent and reliable results: ensure the fluid is homogeneous, test temperature is stable, and repeat the measurement if required.
This “dip-and-drain” method offers a quick and practical way to estimate viscosity — ideal for routine quality control, production checks, or pre-application inspection of coatings and fluids.
⸻
Key features & benefits
- Dip/immersion cup — easy direct use in containers or vats
- Fixed stainless-steel nozzle and long loop handle — robust, ergonomic and chemical-resistant
- Available in titanium-anodized aluminum or stainless-steel versions
- Quick and portable viscosity checks, suitable for site or production use
- Suitable for a wide range of fluids: paints, coatings, lacquers, inks, varnishes, etc.
- Supplied with a protective hard plastic storage case for safe transport and storage
- Ideal for production-floor viscosity control, QC labs, coating workshops, and field testing
⸻
Technical Specifications
| Specification | TA Cup (Titanium-Anodized Aluminium) | TFR Cup (Stainless Steel) |
|---|---|---|
| Cup Type | Dip/Immersion Cup, 100 cc | Dip/Immersion Cup, 100 cc |
| Cup Material | Titanium-anodized aluminium | Stainless steel |
| Nozzle Material | Stainless steel, fixed | Stainless steel, fixed |
| Handle | DIN 53211 (No. 4) | Stainless steel with DIN 53211 (No. 4) |
| Weight | 176–179 g | 450 g |
| Maximum Width | 63 mm | 63 mm |
| Cup Height | 74 mm | 74 mm |
| Total Height | 250 mm | 250 mm |
| Standards | DIN 53211 (4mm orifice is according to and the other types are similar to this standard) | |
⸻
Available Cups
| SKU | Material | Orifice Ø | Notes |
|---|---|---|---|
| CSTVF2073 | Titanium-anodized aluminium | 4 mm | DIN 53211 compliant |
| CSTVF2215 | Stainless steel | 4 mm | DIN 53211 compliant |
| CSTVF2071 | Titanium-anodized aluminium | 2 mm | Similar to DIN 53211 |
| CSTVF2072 | Titanium-anodized aluminium | 3 mm | Similar to DIN 53211 |
| CSTVF2074 | Titanium-anodized aluminium | 5 mm | Similar to DIN 53211 |
| CSTVF2075 | Titanium-anodized aluminium | 6 mm | Similar to DIN 53211 |
| CSTVF2077 | Titanium-anodized aluminium | 8 mm | Similar to DIN 53211 |
| CSTVF2213 | Stainless steel | 2 mm | Similar to DIN 53211 |
| CSTVF2216 | Stainless steel | 5 mm | Similar to DIN 53211 |
| CSTVF2217 | Stainless steel | 6 mm | Similar to DIN 53211 |
⸻
Scope of Supply
TQC Sheen Viscosity Cup DIN 53211 (selected cup number / orifice)
Protective hard plastic storage case
⸻
Accessories
CSTCL0030 | Calibration Certificate (available on request)
CSTDI0076 | Stopwatch
CSTVF2053 | Viscosity Conversion Disc
CSTTE0027 | Precision Thermometer
CSTDI0076 | Stopwatch
CSTVF2053 | Viscosity Conversion Disc
CSTTE0027 | Precision Thermometer
⸻
Manufacturing and Standards
The TQC Sheen DIN53211 Viscosity Cups are manufactured in the Netherlands by Industrial Physics, a leading provider of coating test equipment. Each cup is engraved with an unique serial number for traceability. The cups are designed according or similar to DIN 53211.
⸻
