Description

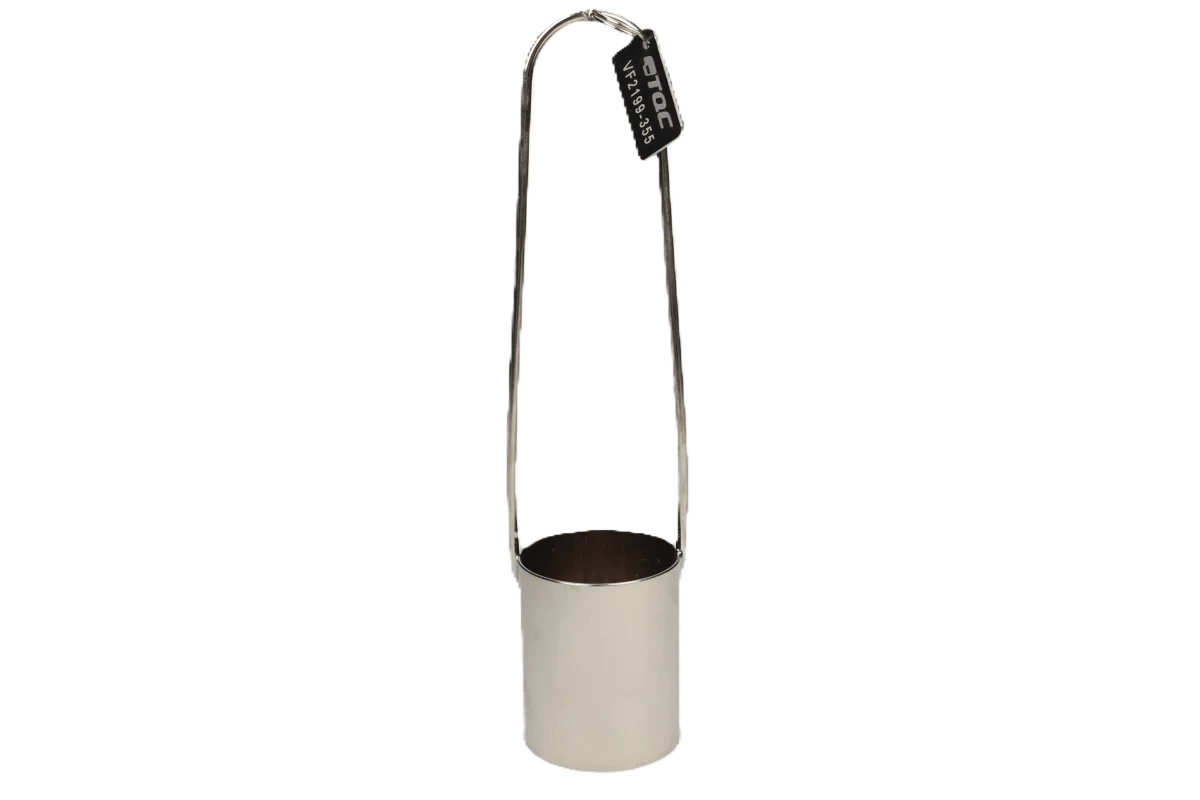

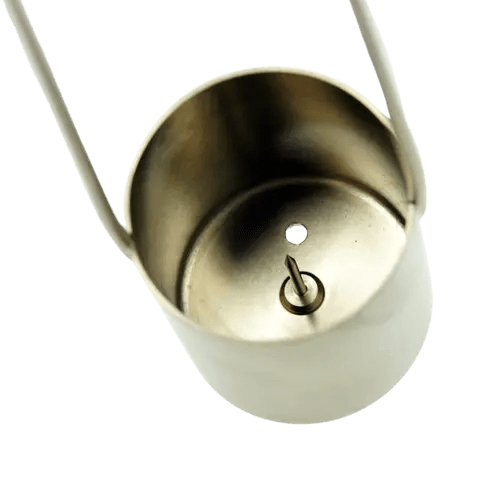

The TQC Sheen Lory Viscosity Cup is a dip-immersion flow cup designed for quick and practical viscosity measurements during production or on-site inspections. The cup features a cylindrical body with a long handle and a bottom orifice fitted with a needle point. When the cup is immersed into a liquid coating and then lifted out, the flow time until the needle appears indicates the viscosity of the fluid. This makes the Lory Cup a simple yet effective tool for operators and inspectors.
⸻
How it Works
1.Immerse the Lory Viscosity Cup completely into the liquid to be tested.
2.Lift the cup vertically and start timing as the liquid begins to flow from the orifice.
3.Stop timing the moment the needle point becomes visible through the bottom opening.
4.The recorded time represents the viscosity of the paint, lacquer, coating, or similar fluid.
5.Repeat the measurement under the same temperature conditions for best accuracy.
The Lory Cup provides fast, repeatable viscosity readings without the need for complex instruments, making it ideal for production environments.
⸻
Key features & benefits
- Fast dip-and-drain viscosity testing
- Clear flow-break detection through needle point visibility
- Robust metal cup construction for long-term industrial use
- Long handle for easy immersion into tanks or containers
- Suitable for paints, coatings, lacquers, inks and similar fluids
- Simple operation requiring no special equipment
- Ideal for quick quality control checks
| Specification | Detail |
|---|---|
| Cup type | Dip / immersion flow cup (Lory type) |
| Viscosity range (indicative) | Approx. 50 – 1,100 cSt |
| Material | Stainless Steel Cup Material: Brass Zinc Plate |
| Dimensions | Approx. 170 × 49 mm; ~130 g (typical Lory design) |
| Measurement principle | Flow-time (dip & drain) — time until needle/flow break appears |
| Suitable liquids | Paints, lacquers, coatings, inks and similar low/medium-viscosity fluids |
⸻
What’s included
CSTVF2199 | TQC Sheen Lory Viscosity Cup
Protective storage case
⸻
Accessories
Optional accessories to support accurate viscosity measurement:
CSTCL0030 | Calibration Certificate (available on request)
CSTDI0076 | Stopwatch
CSTTE0027 | Precision Thermometer
CSTDI0076 | Stopwatch
CSTTE0027 | Precision Thermometer
⸻
Manufacturing
The TQC Sheen Lory Viscosity Cup is manufactured by Industrial Physics (The Netherlands, Europe)
⸻
Links
TQC Sheen Lory Cup | Product Sheet
