Description
The TQC Sheen AFNOR Viscosity Cups are laboratory-type viscosity measurement tools manufactured for precise and repeatable testing of liquid viscosity in accordance with the AFNOR NF T030-014 standard. Built from high-quality titanium-anodized aluminum, each viscosity cup features a fixed orifice for consistent flow measurement and is supplied in a protective storage case. These cups are widely used across industries such as coatings, inks, food and beverage, automotive and aerospace for quality control and research purposes.
⸻
How It Works
- Mount the viscosity cup on a suitable stand (e.g., tripod or ring stand) to ensure stable positioning.
- Pour your test liquid into the cup until it reaches the fill level.
- Start a timer as the liquid begins to flow through the calibrated orifice.
- Stop the timer once the continuous flow breaks into drops.
- Convert the measured flow time into kinematic viscosity (cSt) using a viscosity conversion chart or disc under controlled temperature conditions.
This laboratory method using a fixed orifice and a stable stand produces accurate and repeatable measurements, making it suitable for quality control and formulation testing.
⸻
Key Features & Benefits
- Precision AFNOR-standard laboratory viscosity cups for consistent flow time testing.
- Titanium-anodized aluminum construction for durability and easy cleaning.
- Multiple orifice size options to cover a wide viscosity range.
- Supplied with protective storage case to prevent damage when not in use.
- Each cup has a unique engraved serial number and includes a factory certificate.
- Optional calibration certificate available upon request to support traceability.
- Compatible with viscosity testing accessories such as tripod stands and digital timers.
⸻

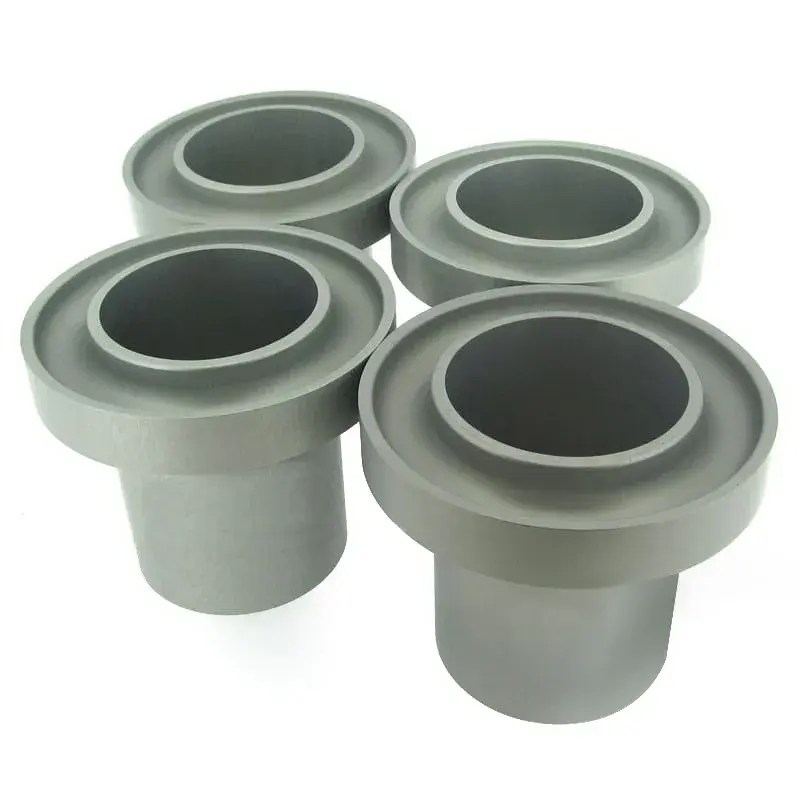

Types of AFNOR Viscosity Cups
| SKU | Type |
| CSTVF2195 | AFNOR 2.5 mm orifice, laboratory type, viscosity flow cup |

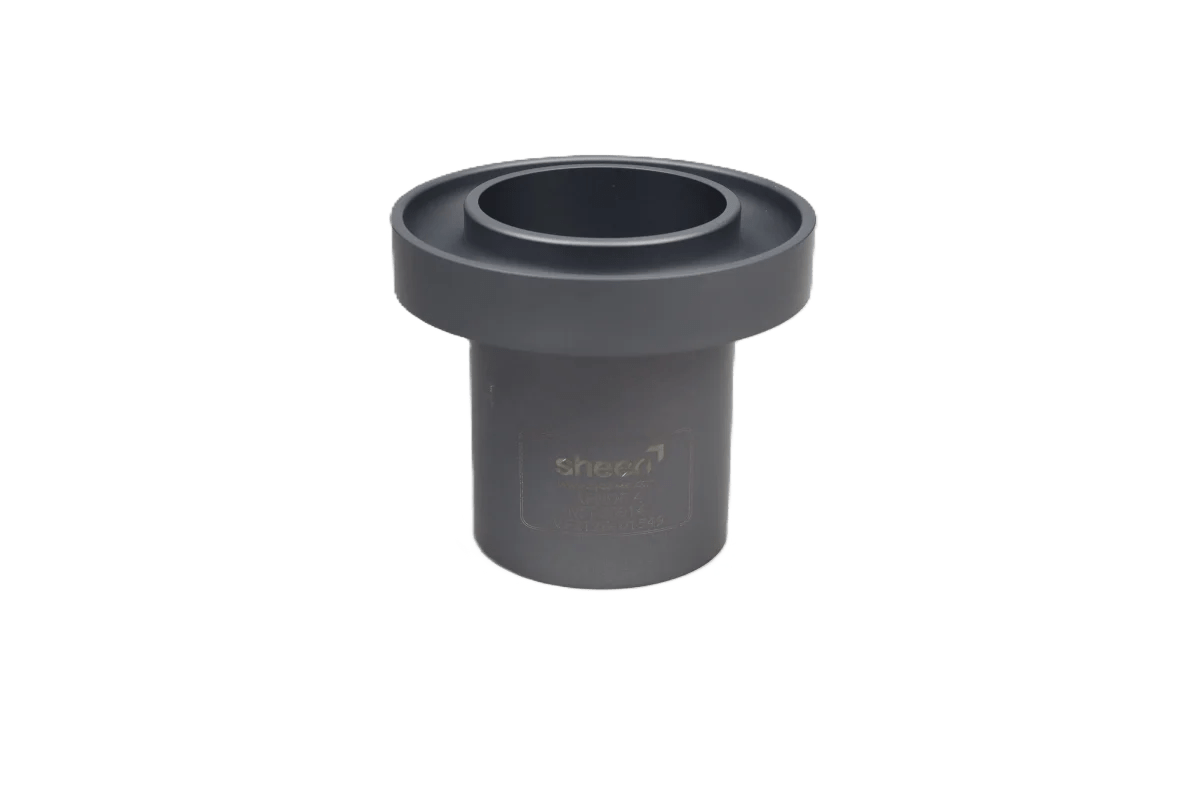

| CSTVF2196 | AFNOR 4 mm orifice, laboratory type, viscosity flow cup |
| CSTVF2197 | AFNOR 6 mm orifice, laboratory type, viscosity flow cup |
| CSTVF2198 | AFNOR 8 mm orifice, laboratory type, viscosity flow cup |
⸻
Accessories
CSTCL0030 | Calibration Certificate (available on request)
CSTVF2061 | Tripod Stand for Viscosity Cups
CSTVF2062 | Ring Stand for Viscosity Cups
CSTVF2067 | Temperature Control Jacket for DIN & ASTM
CSTVF2068 | Temperature Control Jacket for ISO & AFNOR
CSTDI0076 | Stopwatch
CSTVF2053 | Viscosity Conversion Disc
CSTTE0027 | Precision Thermometer
CSTF2063 | Glass Plate GP20
CSTVF2061 | Tripod Stand for Viscosity Cups
CSTVF2062 | Ring Stand for Viscosity Cups
CSTVF2067 | Temperature Control Jacket for DIN & ASTM
CSTVF2068 | Temperature Control Jacket for ISO & AFNOR
CSTDI0076 | Stopwatch
CSTVF2053 | Viscosity Conversion Disc
CSTTE0027 | Precision Thermometer
CSTF2063 | Glass Plate GP20
⸻
Scope of Supply
TQC Sheen AFNOR Viscosity Cup (chosen size)
Hard protective storage case with soft interior padding.
Factory standard certificate of conformity.
⸻
Manufacturing and Standards
The TQC Sheen AFNOR Viscosity Cups are manufactured in the Netherlands by TQC Sheen, part of Industrial Physics, a leading provider of coating test equipment. Each cup is produced under strict quality control and engraved with a unique serial number.
These viscosity cups are precision engineered to meet the AFNOR NF T030-014 standard for laboratory viscosity measurement. Manufactured from robust materials and supplied with certification, they are suitable for professional use in quality control, research laboratories, industrial production and calibration environments where reliable viscosity data is required.
