Description
⸻

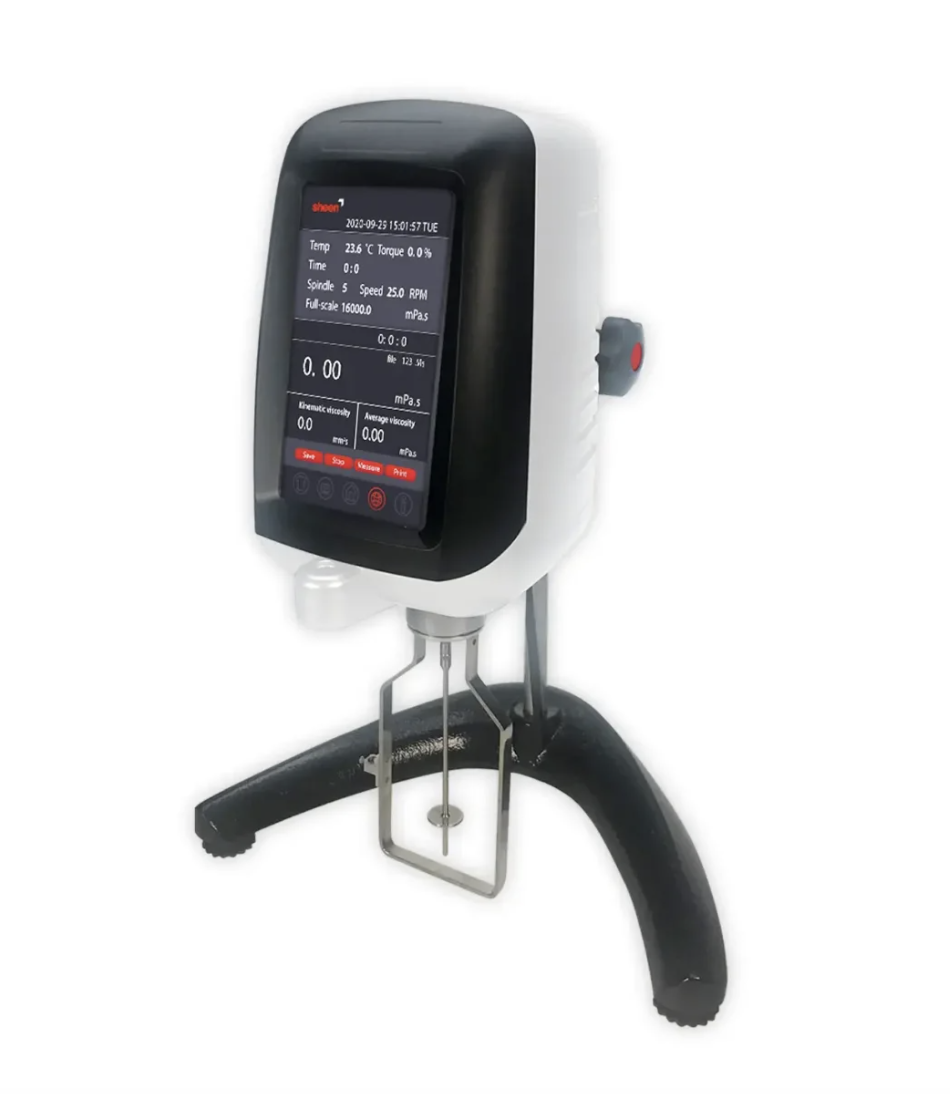

The TQC Sheen Multi Spindle Viscometer is a modern digital instrument designed for precise viscosity measurement across a broad range of liquids including paints, coatings, inks, adhesives, cosmetics and food products. Built around the trusted Brookfield viscosity testing method, this viscometer measures fluid resistance by determining the torque required to rotate various spindles at defined speeds. With its high‑tech touchscreen, selectable spindle and speed combinations, and automatic unit conversion, the Multi Spindle Viscometer delivers accurate, repeatable results while supporting a wide range of measurement needs in quality control, research and production environments.
⸻
How It Works
- Install the viscometer on a stable bench or test stand.
- Select and attach one of the included RV spindles to match your sample’s viscosity range.
- Place the sample fluid in an appropriate container and lower the spindle into the liquid.
- Set the desired test speed within the 0.3 to 100 rpm range.
- The instrument rotates the spindle and measures the resistance (torque) created by the fluid.
- Viscosity values are calculated and displayed in your selected units (mPa·s, Pa·s, dPa·s, cP, P, cPs), with dynamic and kinematic conversions as required.
This method allows users to tailor tests to different materials, obtain comprehensive viscosity data and store results for quality control or formulation analysis.
⸻
Key Features & Benefits
- Wide speed range (0.3 – 100 rpm) for versatile viscosity testing
- Brookfield spindle method provides reliable torque‑based viscosity measurement
- Intuitive 7‑inch colour touchscreen for clear visualization of parameters and results
- Automatic dynamic and kinematic conversion of viscosity values
- Selectable viscosity units (mPa·s, Pa·s, dPa·s, cP, P, cPs)
- Continuous viscosity display with help screens and guidance
- 6x RV spindle set included with protective case and tabletop holder
- Measurement storage on USB stick for data logging and traceability
- Temperature probe and spindle protection frame included for enhanced testing control
⸻
Scope of Supply
- CSTDV2600 TQC Sheen Multi Spindle Viscometer unit

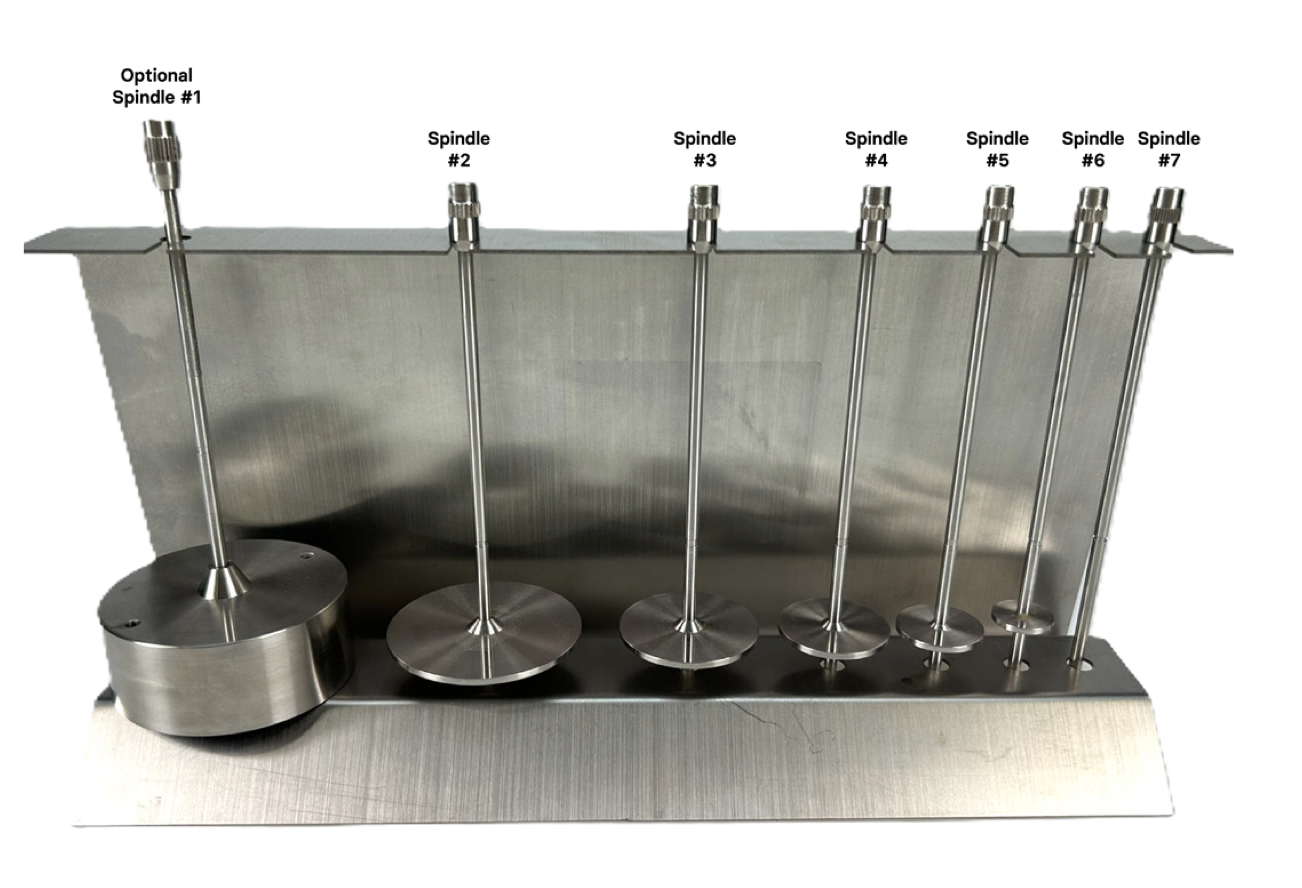

- RV spindle set (#2, #3, #4, #5, #6 and #7)
- Base and mounting rod
- Touchscreen display interface
- Power adapter (100–240 VAC)
- USB stick for data storage
- User manual and certificate
⚠️ Note: Additional spindle #1 and calibration oils can be ordered separately.
⸻
Accessories
•Additional RV spindles (optional #1 or spare spindles)
•Calibration oil sets for verifying instrument performance
⸻
Manufacturing and Standards
The TQC Sheen Multi Spindle Viscometer is engineered and manufactured by TQC Sheen, a specialist brand within Industrial Physics Inks & Coatings. With headquarters and production in the Netherlands, TQC Sheen instruments are built to strict European quality standards and provide consistent, reliable viscosity measurement data for laboratory, quality control and industrial applications. The TQC Sheen Multi Spindle Viscometer conforms to the Brookfield testing approach.
